A Comprehensive Guide to Conveyor Belt Selection, Installation, and Maintenance

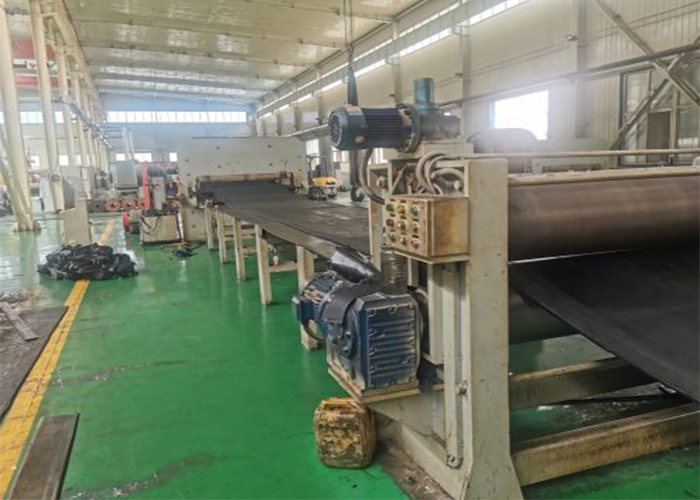

Mining conveyor belts are indispensable components in the mining industry, crucial for the efficient and safe handling of materials extracted from the earth. These belts streamline the transportation process by moving large quantities of raw materials, such as coal, ore, and aggregates, from the mining site to processing facilities and load-out stations. Their ability to operate continuously over vast distances and through harsh environments not only boosts productivity but also enhances the safety of mining operations by reducing the need for heavy truck traffic and manual handling. By leveraging robust mining conveyor belts, the industry can achieve significant time savings and cost reductions, underscoring their vital role in global mining operations.

Choosing the Right Conveyor Belt

Selecting the optimal conveyor belt for mining operations is pivotal for ensuring operational efficiency, durability, and safety. Here, we delve into the various factors to consider, focusing primarily on the material type, belt strength and durability, and environmental considerations.

Material Type

The choice of material for a conveyor belt significantly impacts its performance and suitability for specific mining conditions. Two of the most commonly used materials in the mining industry are nylon and steel cord.

Nylon Conveyor Belts: Nylon is prized for its exceptional flexibility and strength, making it ideal for scenarios where the conveyor path includes frequent turns or changes in elevation. These belts are lighter than steel cord belts and offer good resistance to abrasion, which makes them suitable for transporting materials like coal or crushed stone. They absorb impact well and are relatively easy to install and maintain.

Steel Cord Conveyor Belts: These belts are constructed with strands of steel cords embedded in a strong rubber material. Steel cord belts are known for their high tensile strength and are best suited for long-distance conveying tasks in surface mining. They handle high load capacities over long distances with minimal elongation. Their main drawback is their rigidity, which makes them less suitable for routes requiring sharp turns.

Belt Strength and Durability

The tensile strength and durability of a conveyor belt are critical to its ability to withstand the harsh conditions of a mining environment.

Nylon Belts: While nylon belts have high tensile strength and can handle moderate to heavy loads, they are generally more suited to conditions where the belt may face mechanical shocks and abrasions. They are less likely to develop severe wear quickly due to their resilience.

Steel Cord Belts: For extreme conditions involving very long distances and high loads, steel cord belts are preferred due to their superior strength and durability. They are especially beneficial in applications where minimal stretch is a key requirement.

Environmental Factors

Environmental conditions play a significant role in determining the appropriate type of conveyor belt.

Temperature Extremes: In environments with high or low temperatures, materials like PVC or specialized grades of rubber that can withstand these extremes should be considered. Steel cord belts often perform well under high temperatures due to their metal reinforcements.

Exposure to Abrasive Materials: In mining operations where belts are exposed to sharp or highly abrasive materials, the durability of the belt surface becomes crucial. Steel cord belts might offer better long-term durability under such conditions, although thick, specially coated nylon belts can also perform adequately.

Chemical Exposures: For environments where the conveyor belt may come into contact with oils, chemicals, or other corrosive substances, materials that resist such exposures are necessary. Special coatings or composite materials can be employed to enhance resistance in both nylon and steel cord belts.

Selecting the right conveyor belt for mining operations involves a thorough assessment of the material type, belt strength, and environmental factors. Understanding these aspects helps in choosing a belt that not only meets the specific requirements of the task but also maximizes operational efficiency and safety.

Installation Best Practices

Proper installation of conveyor belts is crucial for optimizing performance and extending the lifespan of the belt system in mining operations. This section provides a comprehensive guide to general installation guidelines, as well as specific considerations for nylon and steel cord belts.

General Installation Guidelines

The installation process for conveyor belts involves several key steps to ensure that the belt operates smoothly and efficiently:

1. Preparation: Before installation, ensure that the conveyor frame, rollers, and pulleys are clean, aligned, and level. Remove any debris or obstructions that might damage the belt.

2. Unrolling the Belt: Conveyor belts should be carefully unrolled and laid out along the conveyor path without twisting. This step helps to prevent uneven tension and wear once the belt is operational.

3. Positioning: Position the belt over the conveyor structure, ensuring that it is centered and straight. It’s important to align the belt correctly to avoid issues with tracking later on.

4. Tensioning: Proper tensioning is crucial to prevent slippage and excessive wear. The belt should be tensioned according to the manufacturer’s specifications, using tension meters if available.

5. Splicing: The ends of the conveyor belt must be securely joined together. This is usually done through vulcanization or mechanical fasteners, depending on the belt type and the specific requirements of the mining operation.

6. Initial Testing: Conduct a test run to check for proper installation. Look for smooth operation and correct tracking, making adjustments as necessary.

Specific Considerations for Nylon and Steel Cord Belts

Nylon Conveyor Belts:

Flexibility Handling: Due to their flexibility, nylon belts must be handled with care during installation to prevent overstretching or kinking.

Tensioning: Nylon belts typically require careful tensioning to ensure optimal performance without excessive stretch. Use moderate tension, as over-tensioning can lead to premature wear and potential failure.

Alignment: Ensure that all system rollers and pulleys are precisely aligned to prevent the belt from running off-track, which is more common with more flexible belts like nylon.

Steel Cord Conveyor Belts:

Handling Heavy Weights: Steel cord belts are significantly heavier and require appropriate handling equipment during installation to manage their weight.

Tensioning Requirements: Steel cord belts usually require higher tension than nylon belts due to their design and load-carrying capacity. It’s essential to follow the manufacturer’s guidelines closely to apply the correct tension.

Splicing Techniques: Vulcanized splices are generally preferred for steel cord belts to maintain the integrity and strength of the belt. Ensure that splicing is done by experienced technicians, as improper splices can significantly affect the belt’s durability and performance.

Alignment Techniques:

Both nylon and steel cord belts require careful alignment during installation. Misalignment can lead to uneven wear, increased energy consumption, and potential system damage.

Use laser alignment tools or other precision instruments to ensure that all components are correctly aligned relative to the belt path.

By adhering to these best practices and considering the unique needs of each belt type, mining operations can achieve a reliable and efficient conveyor system that minimizes maintenance issues and maximizes productivity.

Maintenance Strategies

Regular and preventive maintenance are crucial for maximizing the performance and extending the lifespan of conveyor belts in mining operations. Effective maintenance strategies can reduce downtime, increase safety, and ensure that conveyor systems operate at peak efficiency. Here’s a detailed look at maintenance practices tailored for both routine checks and preventive measures, specifically focusing on nylon and steel cord belts.

Routine Checks and Balancing

Routine maintenance involves regular inspections and minor adjustments to ensure the conveyor belt is running smoothly and to identify potential problems before they become serious.

1. Daily Visual Inspections: Conduct visual inspections daily to check for signs of wear, tear, and damage. Look for fraying edges, cracks, or any deformities on the belt surface. For nylon belts, pay particular attention to abrasions and tears. In the case of steel cord belts, look for signs of rusting or broken cords.

2. Weekly Alignment Checks: Misalignment can lead to serious issues such as uneven belt wear and increased energy consumption. Use alignment tools to check and adjust the conveyor belt alignment weekly.

3. Monthly Tension Checks: Improper tension is a common issue that can cause belt slippage and premature wear. For nylon belts, ensure the tension is enough to avoid slippage without overstressing the fabric. For steel cord belts, maintain higher tension as per manufacturer specifications but be cautious of over-tensioning which can lead to belt and motor damage.

4. Load Balancing: Regularly check that the material load is evenly distributed across the conveyor belt. Imbalanced loading can cause the belt to drift off center and increase wear on one side.

Preventive Maintenance

Preventive maintenance involves planning maintenance tasks in advance to prevent failures and extend the belt’s operational life. This strategic approach is particularly important for both nylon and steel cord belts due to their critical roles in mining operations.

1. Scheduled Downtime for Maintenance: Plan for regular downtime to perform comprehensive maintenance activities. This includes detailed inspections, cleaning, lubrication of moving parts, and necessary repairs or replacements.

2. Wear and Tear Monitoring: Implement a monitoring system that regularly records the condition of the belts. For nylon belts, monitor for cuts, tears, and abrasions. For steel cord belts, use advanced techniques like X-ray or magnetic scans to detect internal damages and cord fraying.

3. Replacement Timelines: Establish timelines for replacing critical components based on historical data and manufacturer recommendations. Nylon belts may need more frequent replacement due to their susceptibility to environmental factors like moisture and temperature. Steel cord belts, while more durable, should be replaced if internal damage or significant wear is detected.

4. Training for Maintenance Staff: Ensure that all maintenance personnel are properly trained on the specific needs and maintenance procedures for different types of belts. This includes training on how to detect early signs of failure and the correct way to perform repairs.

5. Use of Technology: Incorporate technology such as condition monitoring devices and maintenance management software. These tools can help track the health of the conveyor belts and optimize maintenance schedules based on actual wear rather than fixed intervals.

By implementing these routine and preventive maintenance strategies, mining operations can ensure that their conveyor belts remain in optimal condition, thereby reducing unexpected downtime, extending belt life, and maintaining high levels of safety and efficiency in their operations.

Troubleshooting Common Issues

Identifying Issues

Effective troubleshooting of conveyor belts, particularly nylon and steel cord types, begins with the accurate diagnosis of common issues. Here’s how to identify several prevalent problems:

1. Misalignment: Misalignment is one of the most frequent issues faced by conveyor belt systems. It can be detected by observing the belt’s movement along the conveyor framework. Signs of misalignment include the belt drifting to one side of the conveyor or uneven belt wear. Audible indicators may also be present, such as unusual noises (squeaking or grinding) when the belt operates.

2. Slippage: Slippage occurs when the belt does not move smoothly along the conveyor rollers or when it fails to maintain the intended speed. This can be spotted by a reduction in conveyor speed despite the motor operating at full capacity, or by visible signs of wear or damage where the belt meets the drive pulley.

3. Wear Patterns: Wear patterns on conveyor belts can indicate several issues. Unusual wear can appear as patches, grooves, or ridges on the belt surface. Causes may include abrasive materials, improper belt tension, or exposure to chemicals or extreme temperatures. Regular visual inspections can help in identifying these patterns early.

Solving Problems

Once issues have been accurately diagnosed, specific strategies can be employed to address them in both nylon and steel cord conveyor belts within the mining environment:

1. Misalignment:

   Adjustment of Rollers and Idlers: Realignment of the conveyor structure’s rollers and idlers is a primary response to misalignment. Ensuring these components are correctly positioned and operating smoothly can often correct a drifting belt.

   Installation of Belt Tracking Devices: For ongoing alignment issues, installing belt tracking devices can provide continuous correction and prevent future misalignments.

2. Slippage:

   Increase in Tension: Adjusting the tension of the conveyor belt is a direct method to combat slippage. This ensures the belt maintains adequate grip on the pulleys.

   Enhancing Pulley Traction: Applying coatings or lagging to pulleys can increase friction and enhance traction between the belt and the pulleys. This is particularly effective in environments where moisture or particulates may interfere with belt grip.

3. Wear Patterns:

   Use of Impact Beds and Skirting: Installing impact beds beneath loading zones can reduce the impact on belts when materials are loaded, decreasing surface wear. Skirting along the sides of the load zone can prevent material spillage, which often contributes to uneven belt wear.

   Material and Design Optimization: For problematic wear patterns, switching to a belt design or material better suited to the specific mining conditions can provide a long-term solution. For example, belts with reinforced edges or thicker covers may offer better resistance to the observed wear.

Addressing these issues not only extends the life of the conveyor belts but also enhances the overall efficiency and safety of mining operations. Regular maintenance schedules and timely troubleshooting are crucial in preventing these common issues from developing into more significant problems.
